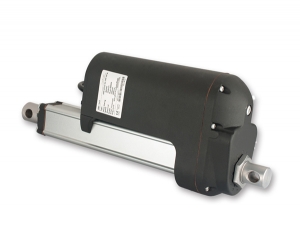

Name：JMK-DT12

Model：JMK-DT12

Category：Technology Industrial Electric Actuator

Product Features：
Maximum thrust 1200KG Maximum self-latching force reaches 1500KGSInner extension tube is made by stainless steel which is more firm Maximum speed reaches 60mm/s when the load is 200KG Potential meter or Hall output signal feedback is optional Meet IP66 standard, suitable for outdoor applicationUsing 48V/36V/24/12V electric motor With clutch system, and overload protection Be able to be applied in various industrial and agricultural vehicles which work in harsh environment Suitable for heavy load application, and maintenance-free

Description Parameter

Maximum thrust 1200KG Maximum self-latching force reaches 1500KG Inner extension tube is made by stainless steel which is more firm Maximum speed reaches 60mm/s when the load is 200KG Potential meter or Hall output signal feedback is optional Meet IP66 standard, suitable for outdoor applicationUsing 48V/36V/24/12V electric motor With clutch system and overload protection Be able to be applied in various industrial and agricultural vehicles which work in harsh environment Suitable for heavy load application and maintenance-free

傳動代碼	傳動比	最大載荷（N）	最大自鎖力（N）	速度mm/s±10%		12V電流（A）		24V電流（A）
傳動代碼	傳動比	最大載荷（N）	最大自鎖力（N）	空載	滿載	空載	滿載	空載	滿載
R4	40:1	12000	15000	6.5	4.5	4	20	2.4	10.5
R3	30:1	11000	12000	8.5	6	4	20	2.4	10.5
R2	20:1	7500	9000	13	9	4	20	2.4	10.5

S4	40:1	10000	12000	13	7	4	20	2.4	10.5
S3	30:1	7000	8000	17	9.5	4	20	2.4	10.5
S2	20:1	5000	6000	25	14	4	20	2.4	10.5

T4	40:1	6500	8000	20	11	4	20	2.4	10.5
T3	30:1	4500	5500	25	13	4	20	2.4	10.5
T2	20:1	3200	4000	38	24	4	20	2.4	10.5

U4	40:1	4000	5000	30	15	4	20	2.4	10.5
U3	30:1	3000	4000	40	20	4	20	2.4	10.5
U2	20:1	2000	3000	60	30	4	20	2.4	10.5
