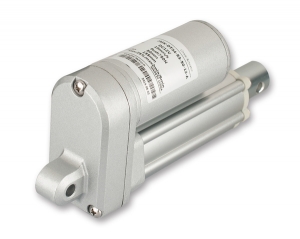

Description
Parameter
Features Maximum thrust 120KGAluminum alloy tubes reinforced bottom coverMaximum speed reaches 100mm/s when the load is 5KG Complete metal gear driving designed for operation for 30,000 times Inbuilt potential meter optionalMeet IP65 standard suitable for outdoor applicationCompatible with 48V/36V/24V /12V electric motorOverload protectionMaintenance-free
| 傳動代碼 |
額定載荷（N） |
速度mm/s±10% |
12V電流（A） |
24V電流（A） |
36V電流（A） |
48V電流（A） |
| 空載 |
滿載 |
空載 |
滿載 |
空載 |
滿載 |
空載 |
滿載 |
空載 |
滿載 |
| U3 |
200 |
44 |
40 |
1.2 |
2.5 |
0.5 |
1.5 |
0.3 |
1.2 |
0.2 |
0.8 |
| U2 |
100 |
70 |
62 |
1.2 |
3 |
0.5 |
1.5 |
0.3 |
1.2 |
0.2 |
0.8 |
| U1 |
50 |
100 |
90 |
1.5 |
3 |
0.6 |
1.5 |
0.3 |
1.2 |
0.2 |
1 |
| |
|
|
|
|
|
|
|
|
|
|
|
| T3 |
600 |
10.5 |
9.5 |
0.8 |
2.3 |
0.3 |
1.2 |
0.2 |
0.8 |
0.1 |
0.6 |
| T2 |
500 |
16.5 |
14.5 |
0.8 |
2 |
0.3 |
1.5 |
0.2 |
0.8 |
0.1 |
0.6 |
| T1 |
250 |
25 |
22 |
1 |
2 |
0.3 |
1.5 |
0.2 |
1 |
0.1 |
0.6 |
| |
|
|
|
|
|
|
|
|
|
|
|
| S3 |
1000 |
7.5 |
6 |
0.8 |
3 |
0.3 |
1.2 |
0.2 |
0.8 |
0.1 |
0.6 |
| S2 |
700 |
11.5 |
10 |
0.8 |
2.5 |
0.3 |
1.2 |
0.2 |
0.8 |
0.1 |
0.6 |
| S1 |
400 |
17 |
14.5 |
0.8 |
2.5 |
0.3 |
1.2 |
0.2 |
1 |
0.1 |
0.6 |
| |
|
|
|
|
|
|
|
|
|
|
|
| R3 |
1200 |
5.5 |
4.5 |
0.8 |
3 |
0.3 |
1.5 |
0.2 |
0.8 |
0.1 |
0.6 |
| R2 |
800 |
8.5 |
7.5 |
0.8 |
2.5 |
0.3 |
1.2 |
0.2 |
0.8 |
0.1 |
0.6 |
| R1 |
450 |
13 |
11 |
0.8 |
2.5 |
0.3 |
1.2 |
0.2 |
0.8 |
0.1 |
0.6 |
